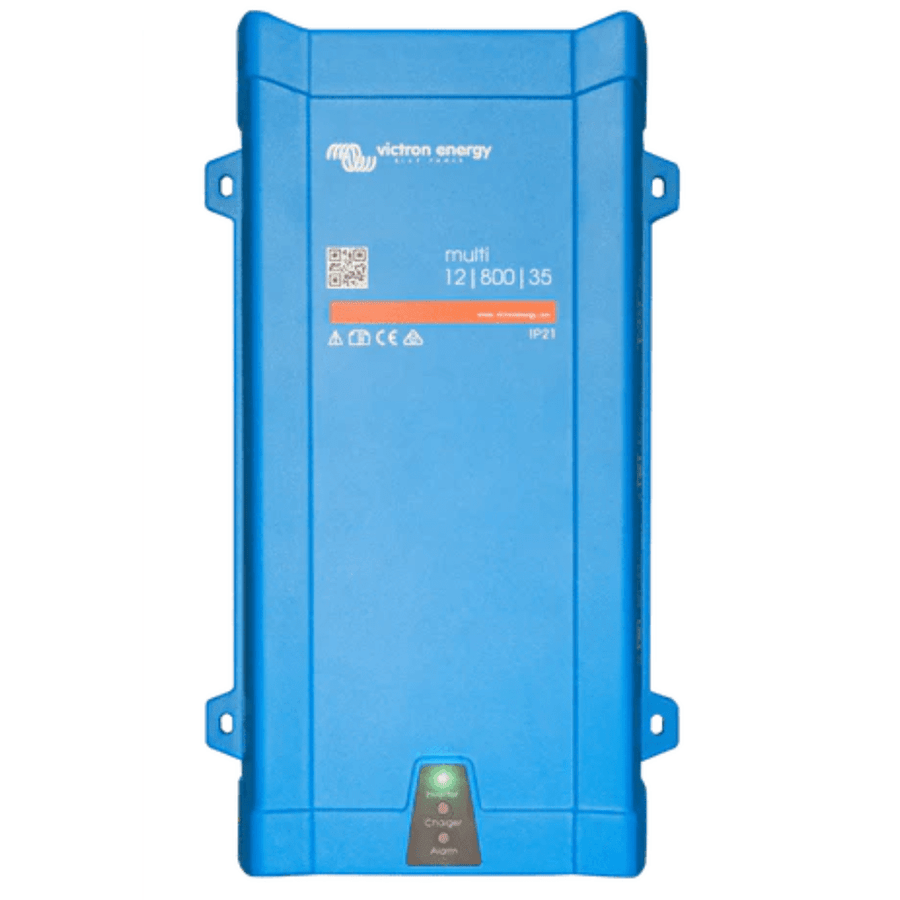

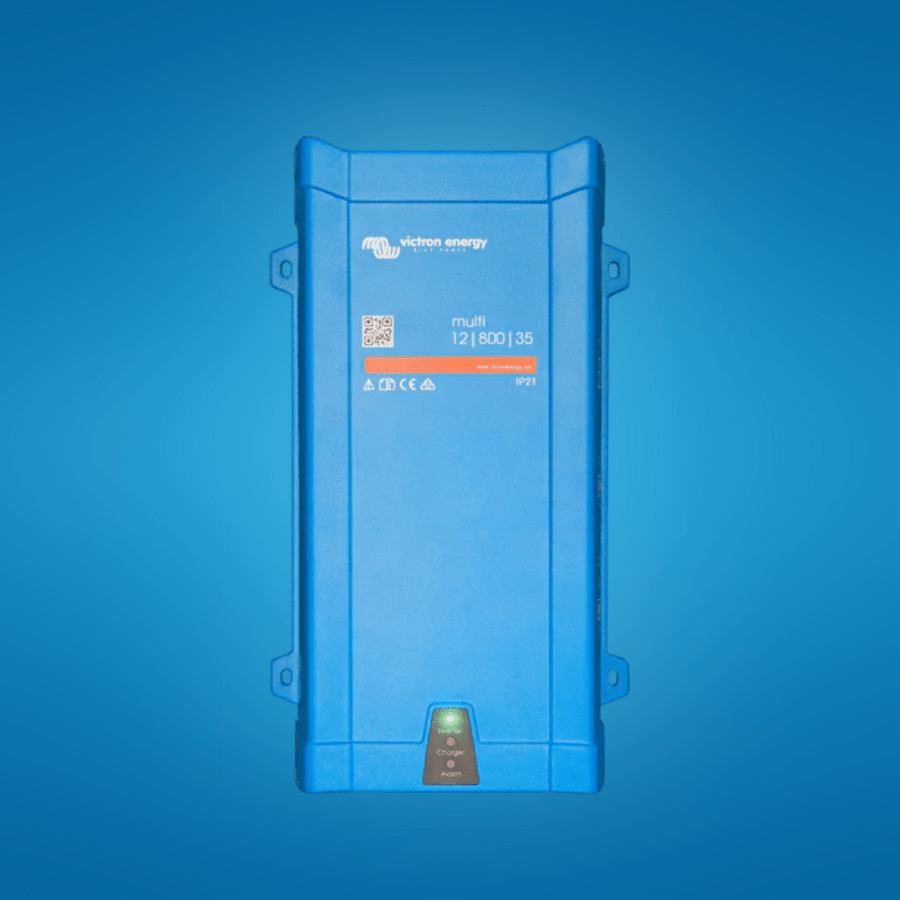

Victron MultiPlus Inverter Charger 12/800/35-16 – PMP121800000

The Victron MultiPlus 12/800/35 combines a powerful pure sine wave inverter, advanced adaptive battery charger, and seamless transfer switch in one robust unit. Designed for marine, RV, and off-grid applications, it delivers uninterrupted power with less than 20ms switchover ensuring critical devices like computers and medical equipment run without interruption. With remote monitoring via Victron’s VRM platform and intelligent features like PowerAssist and PowerControl, this inverter charger optimizes energy use and prevents overloads. Built with Victron’s reliable toroidal transformer technology, it offers high surge capacity (1600W) for demanding tools and motors.
Key Features

3-in-1 Power Solution: Inverter, charger, and automatic transfer switch in a compact enclosure

True UPS Function: <20ms switchover for seamless backup power during grid failure Remote Monitoring: Control and monitor systems globally via VRM portal (with Color Control GX or Venus GX) PowerAssist: Boosts weak shore/generator power using battery energy during peak demands PowerControl: Manages charging current to avoid overloading generators or shore power Energy-Saving Search Mode: Reduces no-load consumption by up to 70% High Surge Capacity: 1600W peak power for motor-driven tools and high-inrush loads Programmable Relay: Configurable for alarms or custom control functions Technical Specifications Model: PMP121800000 Inverter Power: 800VA / 700W continuous (25°C) Peak Power: 1600W Charger Output: 35A adaptive with absorption (14.4V), float (13.8V), and storage (13.2V) Input Voltage: 12V DC (9.5-17V range) AC Input: 187-265V AC, 45-65Hz Efficiency: Up to 92% No-Load Consumption: 7W (2W in Search Mode) Dimensions: 360mm (H) x 240mm (W) x 100mm (D) Weight: 6.4 kg The Victron MultiPlus 12/800/35 delivers professional-grade performance in a versatile all-in-one package. Its rapid transfer switching, smart energy management, and remote monitoring capabilities make it an ideal choice for users seeking reliability and advanced features in a compact design. Trust Victron’s engineering for uninterrupted power in demanding environments
