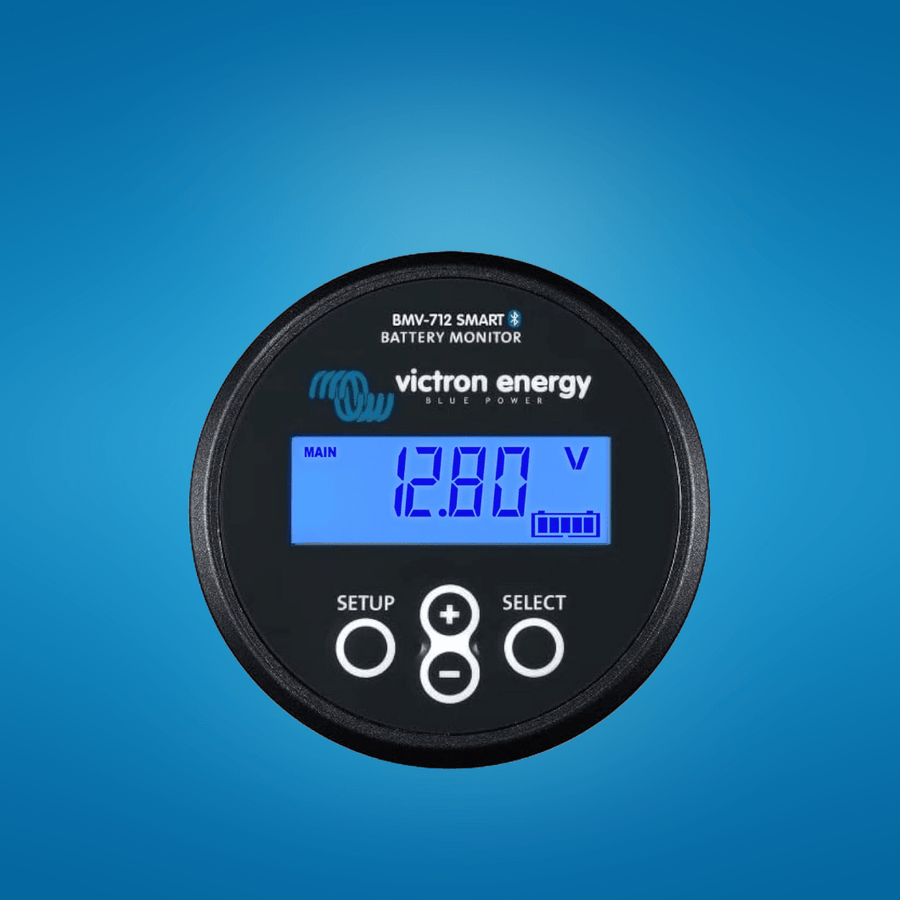

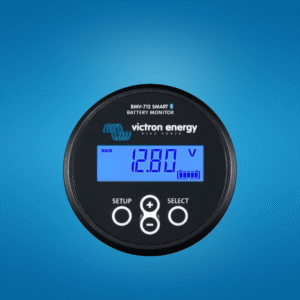

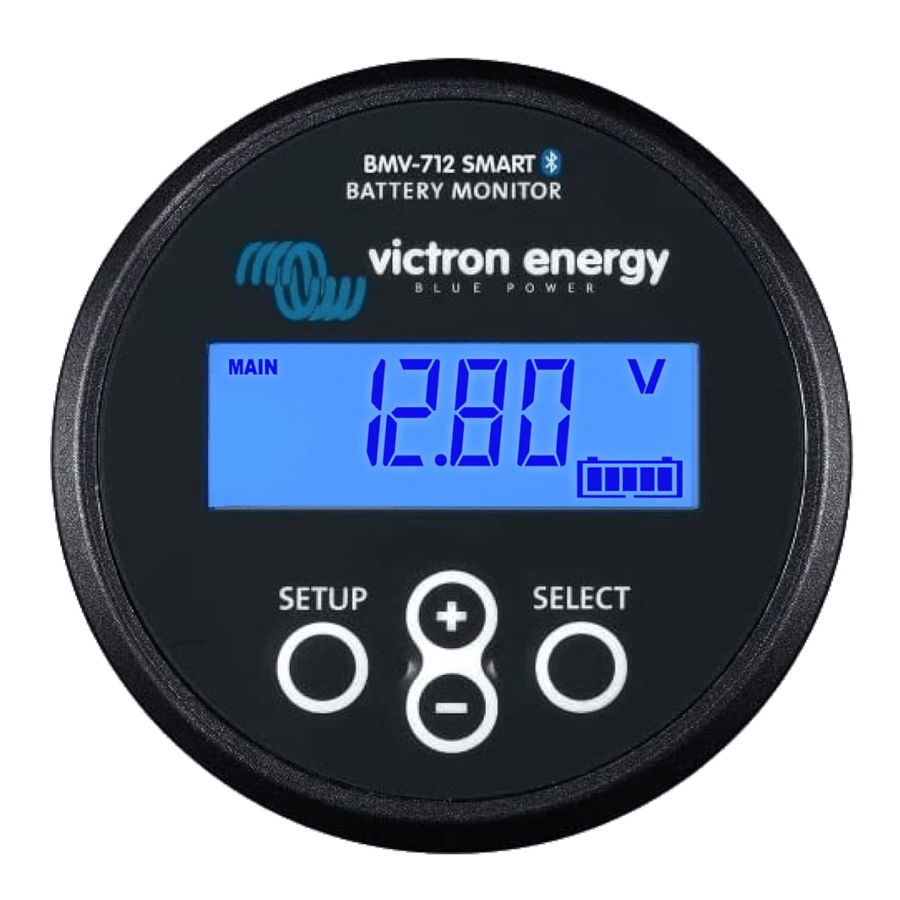

Victron Energy Black Smart Battery Monitor with Shunt 6.5-70 VDC Display and Bluetooth – BMV-712

The Victron Energy BMV-712 Smart Battery Monitor is a modern, high-accuracy monitor designed to give you deep insight into your battery system. It continuously measures voltage, current, and ampere-hours, then calculates your battery’s state of charge (SoC), power usage, and time-to-go based on current loads. With built-in Bluetooth, you can instantly monitor and configure it using the VictronConnect app—no extra hardware needed.
An auxiliary input adds flexibility: you can monitor a second battery, midpoint voltage, or battery temperature (with optional sensor). The monitor includes audible and visual alarms, a programmable relay to automate behavior (e.g. triggering a generator), and robust protection features to keep your system safe.
Key Features:

Full battery insight: tracks voltage, current, amp-hours, SoC, and time-to-go

Built-in Bluetooth for wireless configuration and live data via VictronConnect

Auxiliary input for 2nd battery voltage, midpoint, or temperature monitoring

Programmable relay (60 V / 1 A) to switch loads, start a generator, or respond to alarms

Alarms & thresholds: set under/over voltage, low SoC, temperature, and more

Low power draw: < 1 mA when backlight is off  Wide voltage range: operates from 6.5 V up to 70 V DC  High accuracy & resolution:   • Current ±0.01 A    • Voltage ±0.01 V    • Amp-hours ±0.1 Ah   • SoC ±0.1 %  Supports historic trend data: stores days of voltage, current, SoC trends Rugged design: IP55 front protection, flush mount form factor Easy to integrate: VE.Direct port for connecting with GX devices or logging systems Technical Specifications: Supply voltage range: 6.5 V – 70 V DC  Current draw (backlight off): < 1 mA  Auxiliary voltage input range: 6.5 V – 70 V DC  Battery capacity (Ah) setting range: 1 – 9,999 Ah  Operating temperature range: –40 °C to +50 °C  Temperature input (optional): –20 °C to +50 °C (via external sensor) Relay output: 60 V / 1 A, normally open (configurable)  Resolution & accuracy (with standard 500 A / 50 mV shunt):   • Current: ±0.01 A   • Voltage: ±0.01 V    • Amp-hours: ±0.1 Ah    • State of charge (SoC): ±0.1 %    • Time-to-go: ± 1 minute  Installation & dimensions: flush mount; head front 63 mm diameter; body 52 mm × 31 mm Shunt connection bolts: M10 (0.3937 inch)  Protection class (head): IP55 (not recommended for direct outdoor exposure)  Included shunt: 500 A / 50 mV quick-connect  Cabling included: 10m RJ12 UTP cable + positive fused lead cable With its combination of precision, Bluetooth connectivity, alarm features, and flexible input options, the Victron BMV-712 Smart Battery Monitor is a modern, powerful tool for any system where battery insight matters. It gives real-time, reliable data and control to keep your battery health in check.
