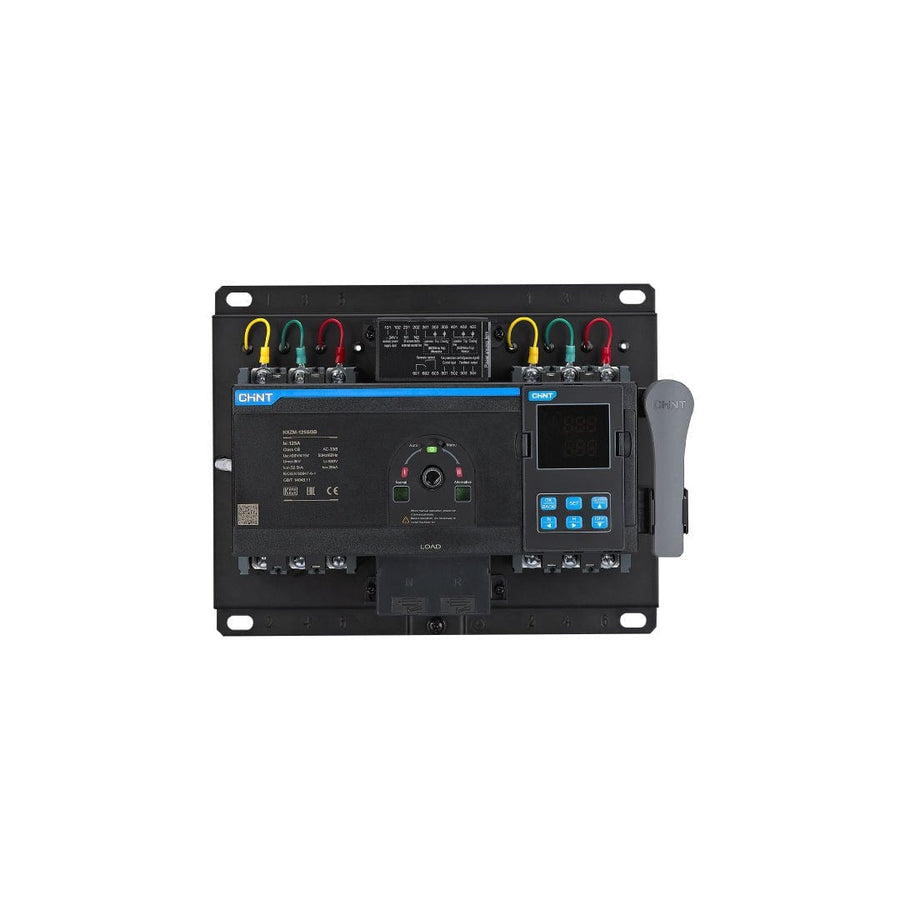

Chint 125A Automatic Transfer Switch – NXZM-125S/4B

Model: NXZM-125S/4B

Rated Current: 125A

Poles: 4 Poles

Rated Voltage: 400V AC

Frequency: 50/60Hz

Transfer Type: Automatic

Switching Time: ≤3 seconds

Control Mode: Automatic & Manual

Contact Type: Silver alloy contact

Protection Features:

Overload protection
Short circuit protection
Under-voltage and over-voltage protection

Mechanical Life: 10,000+ operations

Operating Temperature Range: -25°C to +70°C

Enclosure Material: Flame-retardant plastic

Mounting: Surface or DIN rail mountable

The Chint 125A Automatic Transfer Switch (NXZM-125S/4B) is engineered to provide reliable and automatic switching between the main electrical supply and backup generators. Its compact design and high-performance features make it ideal for residential, commercial, and industrial applications, ensuring continuous power flow during outages. Equipped with intelligent overload protection and short-circuit safeguards, this switch is built for safety and longevity.
